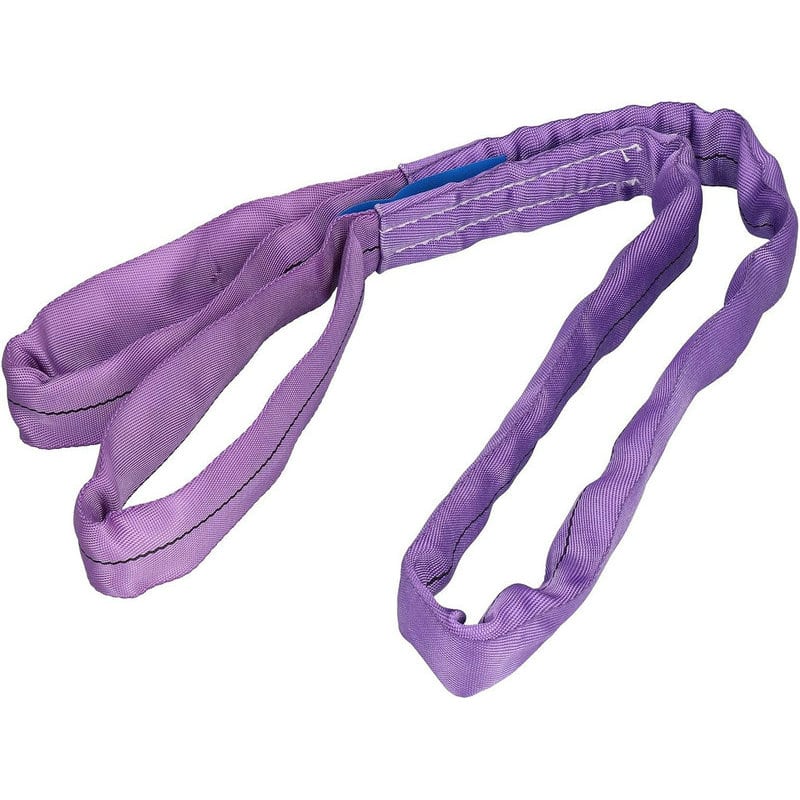

Description Color Color-coded according to EN 1492-1 Working Load Limit with 1 Webbing Sling Straight lift Choked lift β 0°-7° 7°-45° 45°-60° up to 45° 45°-60° 1.0 0.8 2.0 1.4 1.0 0.7 0.5 Purple WLL1T 1.000 800 2.000 1.400 1.000 700 500 Color Color-coded according to EN 1492-1 Working Load Limit with 2 Webbing Sling Straight lift up to 45° Choked lift up to 45° Straight lift 45°-60° Choked lift 45°-60° 1.4 1.12 1.0 0.8 Purple WLL1T 1.400 1.120 1.000 800 The Lift All Round Slings are color-coded according to EN 1492-1, designed for various lifting applications with different working load limits (WLL) depending on the number of webbing slings used and the lifting angle. For a single webbing sling, the WLL is as follows: Straight lift: 1,000 kg Choked lift: 800 kg Load Angles (β): Excellent performance from 0° to 60°, with adjustable limits for specific lifting situations. 0°-7°: 2,000 kg 7°-45°: 1,400 kg 45°-60°: 1,000 kg, 500 kg up to 45°: 700 kg When using two webbing slings, the limits increase to: Straight lift (up to 45°): 1,400 kg Choked lift (up to 45°): 1,120 kg Straight lift (45°-60°): 1,000 kg Choked lift (45°-60°): 800 kg The color purple indicates the specific specifications of the WLL1T model. Distributors can leverage this detailed information to effectively communicate the lifting capacities and configurations of Lift All Round Slings to their customers.
