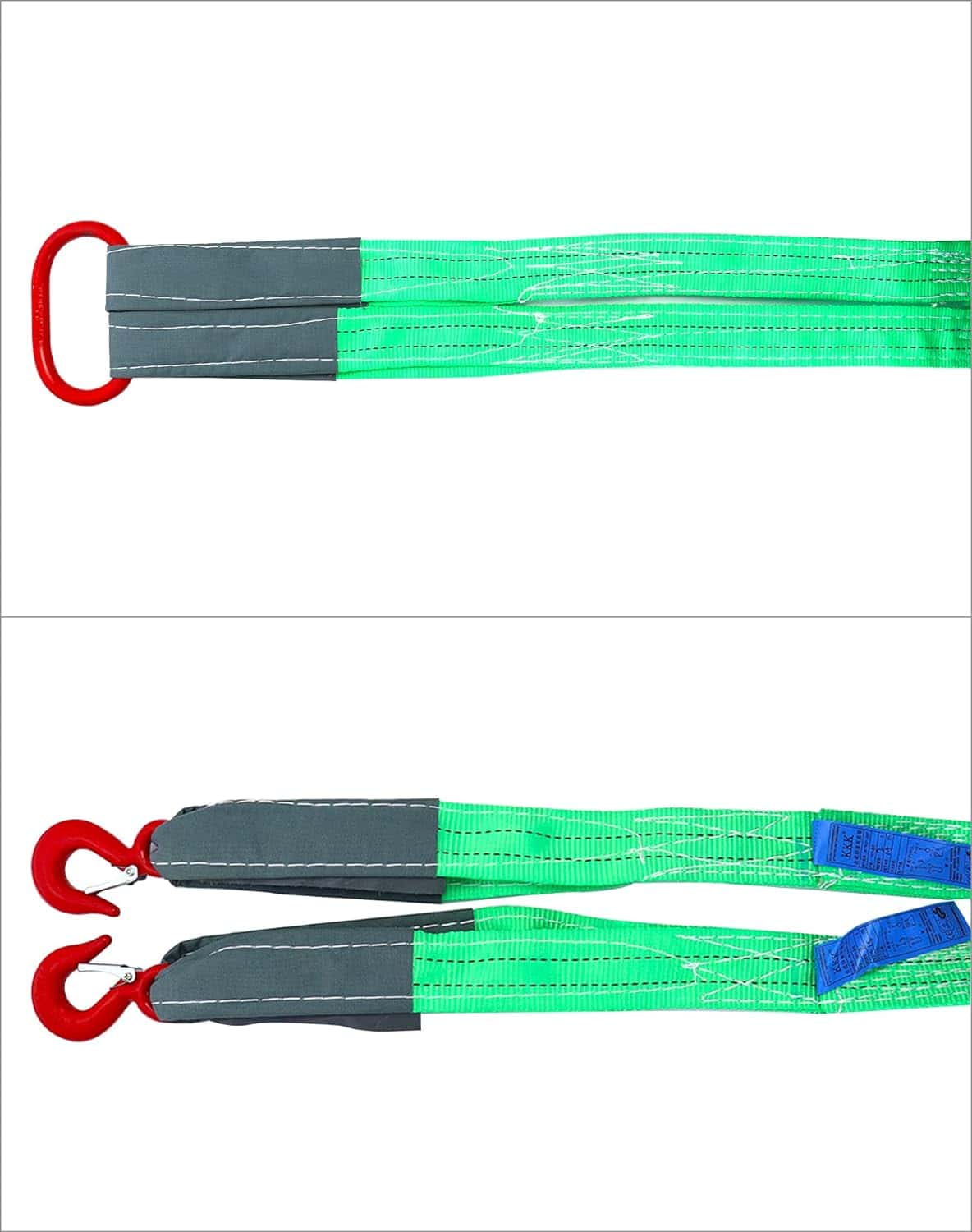

Description Webbing width (mm) Color-coded according to EN 1492-1 Working Load Limit with 1 Webbing Sling 60 WLL2T Straight lift Choked lift β 0°-7° 7°-45° 45°-60° 1.0 0.8 2.0 1.4 1.0 2.000 1.600 4.000 2.800 2.000 Webbing width (mm) Color-coded according to EN 1492-1 Working Load Limit with 2 Webbing Sling 60 WLL2T Straight lift up to 45° Choked lift up to 45° Straight lift 45°-60° Choked lift 45°-60° 1.4 1.12 1.0 0.8 2.800 2.240 2.000 1.600 Available in a variety of widths and eye types, the 2 Ton Lifting Sling is designed for safe lifting operations. Key features: Working Load Limits: With 1 Webbing Sling: Straight Lift: 2000kg Choked Lift: 1600kg Angled Lift (β): 0°-7°: 4000kg 7°-45°: 2800kg 45°-60°: 2000kg With 2 Webbing Slings: Straight Lift (up to 45°): 2800 kg Choked Lift (up to 45°): 2240 kg Straight Lift (45°-60°): 2000kg Choked Lift (45°-60°): 1600kg Multiple Configurations: Use in the straight lift, choked lift, or basket configurations at various angles (0°-7°, 7°-45°, 45°-60°) for optimal performance. Various Widths: Available in widths ranging from 30mm to 300mm, offering a WLL from 1 ton to 10 tons in a single sling configuration. Durable Polyester Construction: Ensures low elongation (ca. 3% at WLL, ca. 12% at breaking force) and excellent wear resistance. For the most accurate and up-to-date information, please contact us for official documentation.
