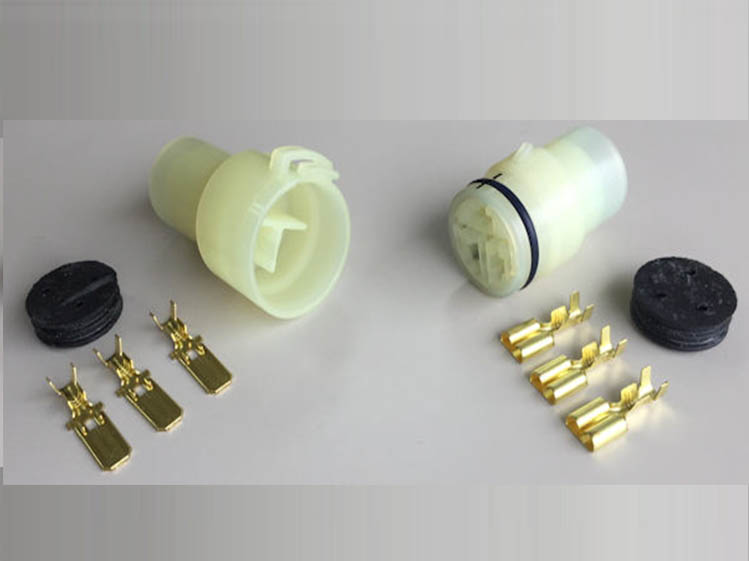

3 Pin DS 250 Sealed Connector

Description Fits wires 18 to 14 AWG wire. Uses tang-less terminals. Used on Raptor 700 Stator ( YFM700R ) YFM350, YFM400 Please Note: in this series two types of terminals are used. Those with locking tangs (lock on terminal), and those we call tangless (lock in housing). Each unit is sold with the correct terminals for its housing. If you are ordering extra terminals please make sure you get the correct type. 1P and 3P use tangless, all others used tanged. If you order extra terminals, make sure you get the correct ones as shown at the bottom of this page. These unique and hard to find connectors are some of the earliest sealed types. Using .250” terminals, they are capable of currents up to 20A. Some bikes from the mid 80s through the 90s used these on the alternator connector. Other uses I’m unsure of, but these large connectors are easy to identify. We sell these with medium sized terminals, but you can buy smaller and larger terminals at the bottom of this page, if you need them.
