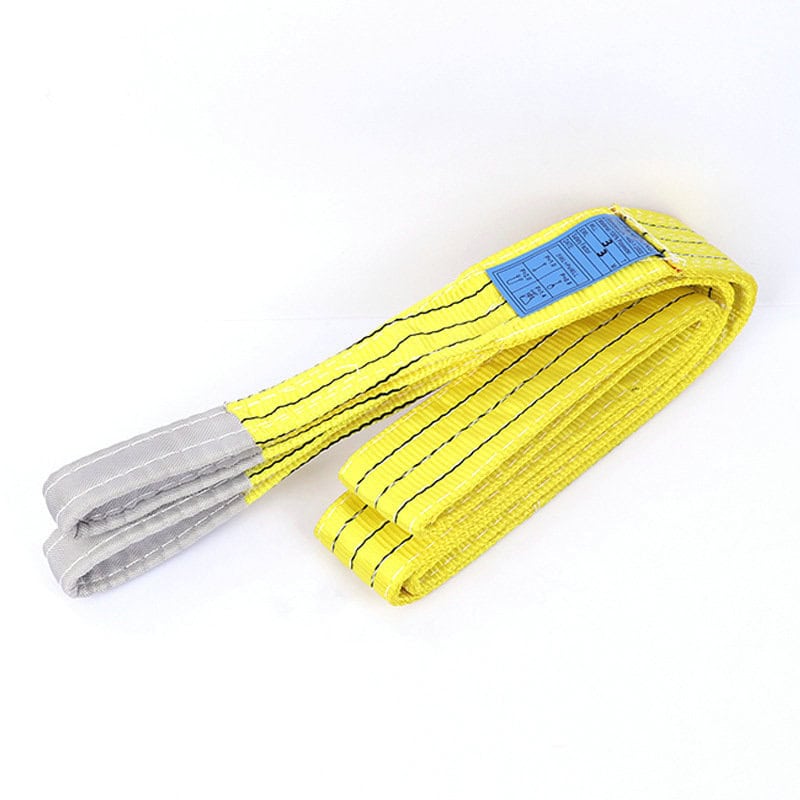

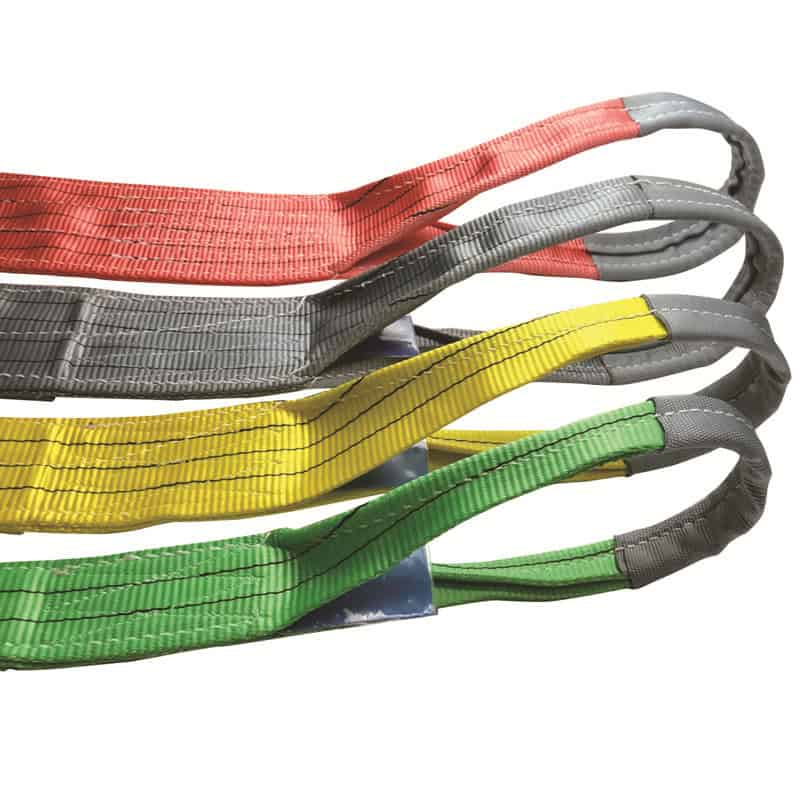

Description Color-coded according to EN 1492-1 Working Load Limit with 1 Webbing Sling WLL4T Straight lift Choked lift β 0°-7° 7°-45° 45°-60° 1.0 0.8 2.0 1.4 1.0 4.000 3.200 8.000 5.600 4.000 Color-coded according to EN 1492-1 Working Load Limit with 2 Webbing Sling WLL4T Straight lift up to 45° Choked lift up to 45° Straight lift 45°-60° Choked lift 45°-60° 1.4 1.12 1.0 0.8 5.600 4.480 4.000 3.200 The Heavy Duty Lifting Sling is a versatile and robust rigging tool designed for safe and efficient lifting of heavy loads in various industrial applications. Key Features: Materials: Built with durable synthetic fibers for maximum load capacity. Flexible Design: Adapts to different load shapes for secure lifting. Multiple Widths: Various options to meet diverse lifting needs. Reinforced Durability: Edges and wear pads for extended service life. Clear Load Limits: Easy-to-read markings for safe use. Versatile Use: Suitable for construction, transportation, and warehouse operations. Working Load Limits: With 1 Webbing Sling: Straight Lift: 4000kg Choked Lift: 3200kg Angled Lift (β): 0°-7°: 8000kg 7°-45°: 5600kg 45°-60°: 4000kg With 2 Webbing Slings: Straight Lift (up to 45°): 5600 kg Choked Lift (up to 45°): 4480 kg Straight lift 45°-60°: 4000kg Choked lift 45°-60°: 3200kg The device offers excellent load stability and weight distribution, enhancing safety and efficiency in lifting operations.
