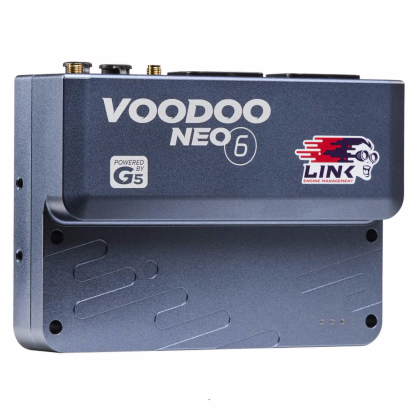

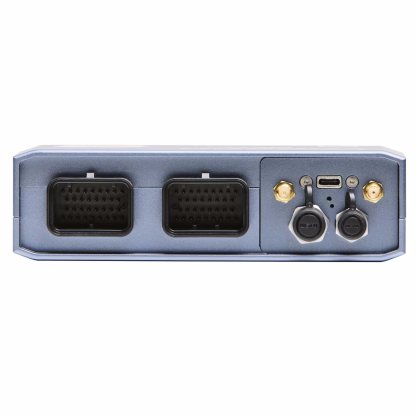

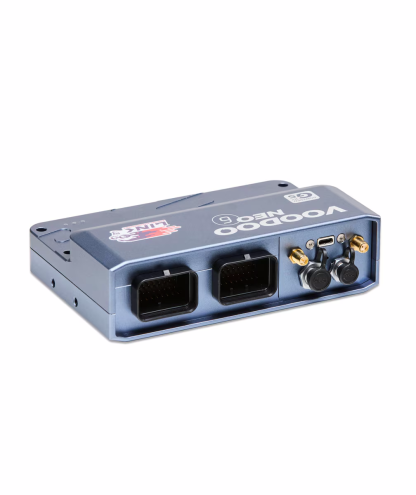

Description The next generation of engine management for many more engines. The G5 Voodoo Neo 6 can run: 8 cylinders port or direct injection and direct spark, or 6 cylinders with direct/port staged injection, and direct spark The G5 Voodoo processing units are the perfect choice for professional level motorsport. Features: New comms module: Up to 10x faster log file download speeds, from minutes to seconds, and enhanced WiFi and GPS Built in ethernet 1GB onboard logging memory 1 onboard wideband CNC case, sealed enclosure 68 pins total (Link A and B 34 pin superseal connectors) K-line support New WEIPU CAN connector, which supplies power for the CAN-bus. Highly customisable IO, using 2 types of multi purpose pins: ADIO pins and Injector/Digital-Input pins. These pins can act as inputs or outputs. Can now power up via the USB cable, making firmware updates and setting up the initial tune a breeze at your PC. Runs on the same highly acclaimed PC Link software as G4X, meaning you don’t need to learn a new software package. You can open both G4X and G5 log and map files in the same software (G4X Map can also be loaded into a G5 Voodoo Pro) More mounting options than ever, with through holes and threaded mount holes on the side and underneath. All NEOs are direct injection capable, including staged port-DI on NEO 4 and 6. Inputs/Outputs Control up to 8 cylinders with port or direct injection and direct spark, or 6 cylinders with direct/port staged injection, thanks to: 12 injector pins 8 ignition pins 6 aux. output pins (4 injector pins are shared with 4 DI Pins. You can only use each pin for either Injection or DI, not both at the same time.) 6 ADIO pins Highly customisable IO, using 2 types of multi purpose pins: ADIO pins and Injector/Digital-Input pins. These pins can act as inputs or outputs. ADIO are a unique pin type. ADIO can act as an Aux Output (switched or PWM), as an Analogue Input, or as a Digital Input, but cannot read PWM/frequency. Neo 6 has Inj/DI pins which are used as either an injector pin, Aux or a Digital Input pin. They can read PWM/frequency. Any unused injector/ignition pins can be used as an auxiliary pin. All ignition and auxiliary pins are back feed protected. 3 analog inputs 10 digital inputs 4 temperature inputs 2 knock inputs 2 trigger inputs 1 x wideband lambda controller Dual H-Bridge e-throttle control Dedicated ignition switch pin 5v sensor supply CAN 1 via Weipuconnector. CAN connector now supplies power and ground. Communications USB-C (cable included) Power over USB WiFi: Connect directly to the ECU via built-in Wifi Access Point, or add it to an existing network (antenna included) CAN: New WEIPU connector supplies power for CAN devices Ethernet: Built in ethernet which can function like USB. Also adds the ability to connect to the ECU over a network. GPS: Functional when GPS antenna connected (antenna included) Data Logging 1gb logging capacity Logging over WiFi 100kHz max. total logging rate 250 logging channels Size & Weight Length: 107mm (4.21 inches) Width: 158mm (6.22 inches) Max side height: 45mm (1.77 inches) Weight: 730grams (25.75 ounces) Mounting 4x M5 threaded mount holes on the sides for bracket mounting 4x M5 threaded mount holes on the underside for clean mounting 4 x 5.5mm unthreaded through holes for mounting through (designed for use with M5 bolts) In the box: G5 Voodoo Neo 6 ECU USB-C Connection Cable WiFi Antenna 4m GPS Antenna (Magnetic or Adhesive Mount) USB-C and SMA Dust Covers QuickStart Guide (A5) Installer I/O table (A3) Link stickers ECU Connectors are available here
