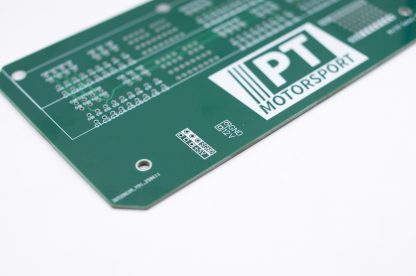

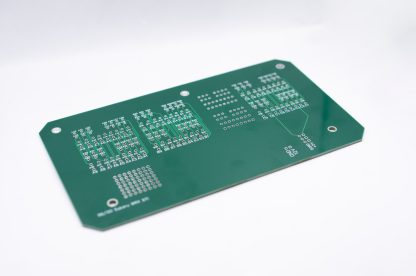

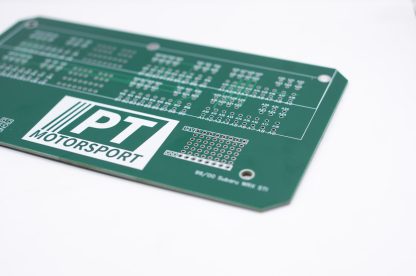

Description This PCB does not have a 1-to-1 breakout for each ECU pin, it is customised for use with the 99-00 WRX. Most pins are 1:1, but the power, ground, and sensor power and ground are not, having been connected for ease of wiring and to cut down on splices in the harness. This is just the bare board. Features: Top and bottom side has every hole labelled for ease of creating your harness 8×5 breakout section with 12V and GND rails, for ease of adding any extra electronics (diodes, resistors etc.) 3 extra Sensor ground and 5V sensor breakouts for ease of adding extra sensors. Designed for wire to solder directly to the board (22-20ga spec 44 and 55 fit nicely)
