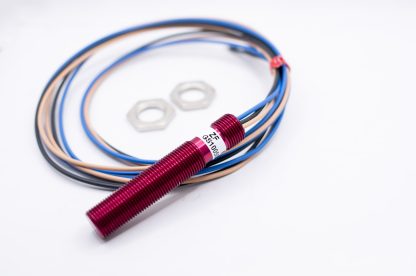

ZF “Cherry” Hall Effect Sensor M12x1 with DTM3 Connector Kit
$10.35
$18.94
Description The ZF GS100502 is a Gear Tooth Speed Sensor, hall-effect device designed for use in applications where ferrous edge detection/near zero speed sensing is needed. They provide a sinking current output. From near zero speed up to 15kHz sensing capability. Compatible with unregulated power supplies. 10 bit dynamic threshold direction offers, automatically adjusting magnetic range and self-compensating to target geometry. Sinusoidal vibration Anodized aluminum housing -40 to 125°C Operating temperature IP67 Protection rating 5-24V supply voltage M12x1mm Thread Threaded Section below label = 46mm length What’s included: 1x GS100502 Sensor 2x Nuts 1x DTM3 Kit
