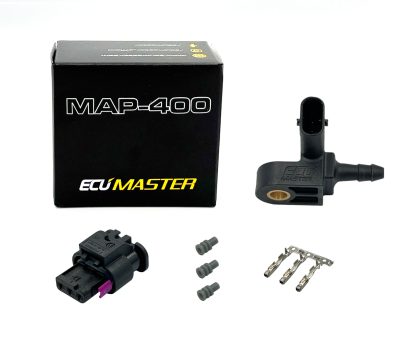

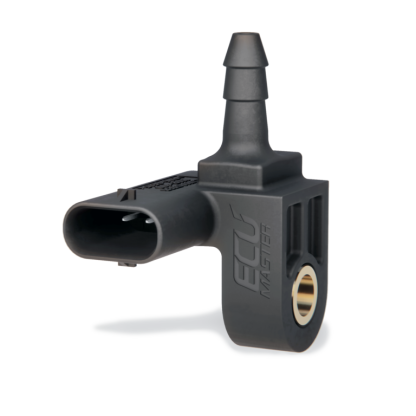

Description The ECUMaster 400kPa (58 psi) MAP (Manifold Absolute Pressure) sensor is a motorsports grade pressure sensor that is not only cost effective but also delivers precise performance. It functions by converting absolute pressure into an electrical voltage signal. This versatile sensor can accurately measure a range of pressures, from vacuum conditions to “boost” pressures up to 300kPa (43.5 psi), making it an ideal choice for various motorsport applications. Pressure (kPa / BAR / PSI) 20 / 0.2 / 2.9 100 / 1 / 14.5 200 / 2 / 29 300 / 3 / 43.5 400 / 4 / 58 Voltage (V) 0.2 1.17 2.38 3.59 4.8 What’s included: 1x ECUMaster MAP-400 Sensor 1x Connector 3x Terminals 3x Wire Seals Datasheet Pinout: Connector housing part number: 1-1670917-1 Terminals part number: 7-1452656-3 Dimensions:
