PT Motorsport DPDM4

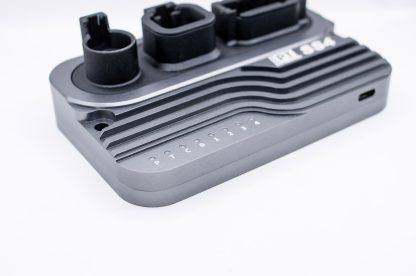

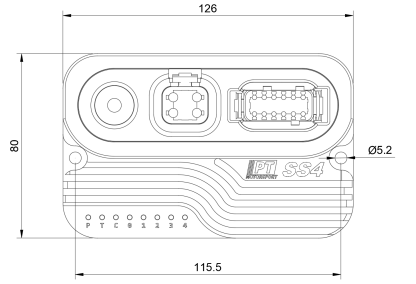

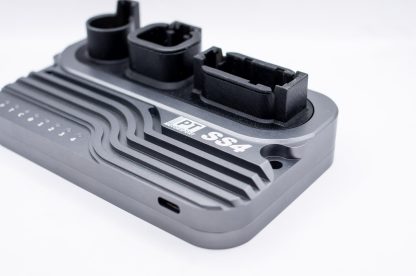

Description PT Motorsport – DPDM4 The PT Motorsport DPDM4 is a 4 Channel Solid State Power distribution module developed for use in motorsport application. 4 Output Channels 25A current per channel (plus inrush) Programmable current limits Programmable retry\reset strategies Thermal overload protection Short Circuit Protection Channel Telemetry over CANbus PWM Capable outputs (Soft start & Speed control) CANbus Programmable CANbus speeds to suit a variety of environments Flexible CANbus settings to ease support with a wide-range of applications CANbus Keypad Support Inputs 2 Digital inputs Output Switching Wiper Park Sleep Mode Enable Hardware Billet case for superior cooling and durability Deutsch connectors for reliable connections with familiar tooling USB-C port for configuration and telemetry Multi-colour LEDs to indicate device and output status at a glance Optionally, wire in a neo-pixel string to have status lights remote to the device M5 Mounting hardware included Software The PT-DPDM is configured with “dingoConfig”, open source software made by the very talented people over at DRT Using this software users can configure multiple PDMs from the one screen when using a USB2CAN, or use USB-C to configure each device individually. The latest version can be found here and an overview of using the software can be found here. Some of the programmable features include: Outputs Current limits (operating and inrush) Output Reset and retry logic Output PWM settings (speed control and soft start) (0-400hz) Digital input configuration (Momentary\latch, high\low, pullup\pulldown) CAN inputs Load from DBC or manually configure CAN message input Virtual Inputs & Condition (create advanced control strategies using conditions and virtual inputs) Counters Flashers Wiper Control (Park, Int, speed control) Starter Disable (Shutdown certain outputs when starter motor is enabled) Software also includes CAN sniffer for easier integration into custom setups. What’s Included PT Motorsport DPDM4 Device 2x M5x20mm Bolts 1x Deutsch DTHD06-1-8S Connector Housing 1x Deutsch Size 8 Socket 1x Deutsch DTP06-4S Connector Housing 1x Deutsch WP4S Wedge Lock 4x Deutsch Size 12 Sockets (Crimp With DET-12 Crimp Tool) 1x Deutsch DTM06-12SA Connector Housing 1x Deutsch WM12S Wedge Lock 12x Deutsch Size 20 Sockets (Crimp With DET-20 Crimp Tool) Firmware The PT-DPDM runs DingoPDM firmware that has been customised to suit the custom PT Motorsport hardware, the latest version can be found here. Documentation CAD Model (STEP) (STL) PDF Drawing Quick Start Guide DBC File Support Find support for the PT-DPDM4 here
