7″ ADU Race Dash

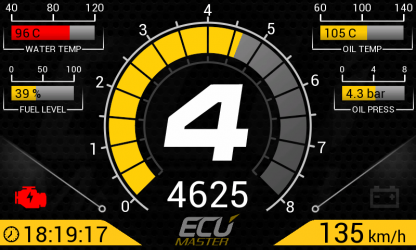

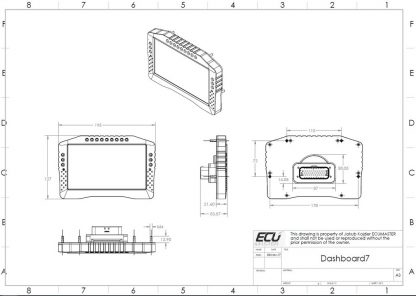

Description Advanced Display Unit Now available (by request) in IP65 Autosport Version Advanced Display Unit State of the art Race Dash Data Logger. Hi intensity colour screen. GPS compatible I/R thermal tyre camera compatible Internal G-meter and Gyroscope Up to 48 pages including pop-up alarms and overlays 8 additional analog inputs 8 additional digital inputs Dual CANbus networks (user configurable) RS 323 serial connection 2 general purpose Aux outputs Unlimited USB stick logging In an answer to market demand for a cost-effective dash-display solution, ECUMASTER is proud to announce the new ECUMASTER Racing Dash family of products. Our specific goal was to create a fully customizable, feature-rich, quality solution for professional drivers. Based on extensive real world user feedback, we have designed and manufactured the perfect device to please every race driver and their engineering team. We know how important it is to have a readable and easily configurable dash logger. One which clearly displays all the necessary data readings and even more importantly, comprehensively relays all important alarms to the driver in a compelling manner. High resolution, high visibility anti-glare screens, guarantee perfect visibility even in adverse weather conditions including bright sunlight. Supplied with multiple pre-configured pages, which can be customized to display specific data required at every race stage e.g. practice, qualifying, race and  troubleshooting. Changed manually or automatically via fully definable condition features. Each channel displayed on each page (gauges, icons, texts, etc) can be easily modified using user-friendly, Windows based software. Our comprehensive overlay system facilitates a multiple page display for important data e.g. low oil pressure, best lap, etc. displayed independently of the actual page displayed. Equipped with 15 ultra-bright RGB LED diodes which can be used as an advanced gear-depended shift light and can be modified by user defined logic e.g. alarms, low fuel level, etc. Using IR beacons or a GPS system the dash turns into a powerful lap timer with a predictive timing function. Advanced predictive lap timing, based on auto-update best reference lap is a feature of the qualification mode which can be activated by selecting the qualification page. Internal 3 axis accelerometer and 3 axis Gyro for G-force, pitch and roll monitoring. Life time fuel consumption calculations are also part of the package. Calculates the fuel remaining in the fuel tank with great accuracy (assuming the ECU is able to send momentary fuel consumption data). Must have feature for any endurance racer. User configurable timers can be adjusted for additional functionality e.g. pit stop timer etc. The ADU also supports thermal cameras to monitor brake discs as well as tyre temperatures (up to 16 points per tyre) Fully independent and fully user definable duel channel CAN BUS ports plus serial RS232 for communication to virtually any type of engine management system. Pre-configured communications templates, allowing direct connection to most common devices. 32-bit automotive controller, paired with a state of the art graphics processor. Such a combination guarantees anti-aliased, high quality graphics at 50 frames per second. For data analysis, data channels can be logged to a USB Flash drive with a frequency of up to 500Hz. All housed in a rugged, CNC machined, black anodized enclosure   Specifications: General: Operating voltage: 6-22V, immunity to transients according to ISO 7637, with reverse polarity protection CPU: 32 bits, automotive, 90MIPS Temperature range: -30C to 80C Enclosure: Anodized aluminium, CNC machined, IP61 Connector: Automotive 35-way AMP connector 5” display:  Antiglare TFT, 800×480, active area 108×64.8mm, luminance 600 cd/m2 7” display: Antiglare TFT, 800×480, active area 154.08×85.92mm, luminance 600cd/m2 Alarms: 15 x ultrabright RGB LEDs Communication: Can: 2 x CAN 2.0B (250, 500, 1000 kbps) independent Serial: RS232 (Rx, Tx) USB: Yes, for data logging Inputs: Analogue: 8 analogue inputs, 10 bits, 500Hz, software selectable pullups/pulldowns Digital inputs: 8 inputs with user defined sensitivity Outputs: General purpose: 2 x protected 3A low side outputs Other: Accelerometer: 3 axis gyro and 3 axis acceleration Light sensor: Built in for auto brightness Temperature sensor: Built in to trace device internal temperature Real time clock: Built in with battery backup Features: Lap timer: Lap timer with memory, predictive timing, triggered by a beacon or GPS Customization: 48 available pages, user defined content, custom graphics allowed Functions: Math channels logical functions Overlays: Yes, user defined CAN stream: User defined, up to 48 input messages, predefined streams for popular ECUs Logging: Memory: USB Flash Memory Rate: Up to 500Hz per channel Real time clock: Yes Supported ECUs  Ecumaster EMU CLASSIC serial Ecumaster EMU CLASSIC CAN Ecumaster EMU BLACK AEM Autronic SM-4 DTA Fast S series Ecumaster PMU EMERALD K3/K6 Emtron EVO X Haltech Elite Hondata Kpro4 (Serial) Hondata Kpro4 (CAN) Life Racing LINK ECU MaxxECU Megasquirt 2 & 3 MoTeC M400,M600, M800 MoTeC M1 Pectel SQ-6 Syvecs VI-PEC OBD 2 over CAN ecus Any ECU able to send data over CAN BUS More info HERE
