3 Position Relay Fuse Box Kit
$35.54
$47.98

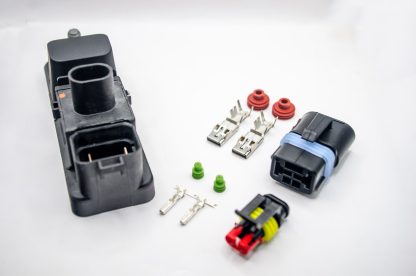

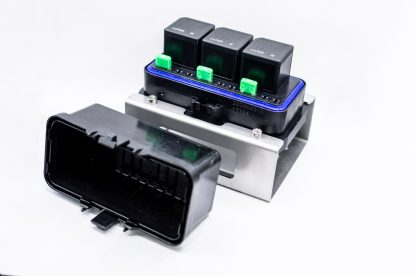

Description Features: Kits supplied with all required components including contacts, seals, mount, cover and housing – Fuses and Relays supplied optionally. Ideal for conveniently and securely networking multiple fuses, relays and circuit breakers. Multiple Contact Point (MCP) contacts confirm component retention and provide a reliable connection even in high vibration environments. Heavy duty thermoplastic housings designed to withstand severe vibration and mechanical shock from harsh environments. Environmentally sealed – IP67, when installed to manufacturer’s specifications. Specifications: Cover: Thermoplastic Body: Thermoplastic Seal: Silicone Rubber Terminals: Tin-plated Copper Alloy Operating Temp: -40°C to 80°C IP Rating: IP67 Terminal Current Rating: 40A Details: Suits 3 mini relays, and mini fuses. 27 total cavities 12x 2.8mm 15x 6.3mm Kit Contents: 1x Housing (2304643-2) 1x Cover (2098164-1) 1x Mount (FHM001) 15x Seals (WS1003) 3x Seals (WS1004) 22x Seals (WS1006) 12x Seals (WS1008) 22x Terminals (1241397-1) 15x Terminals (1241415-1) 4x M4 x 12 Steel Mounting Bolts 3x Relays (optional) 3x Mini Fuses (optional) Additional fuses or fuses with a different rating can be purchased here: https://www.ptmotorsport.com.au/product/mini-blade-fuses/
