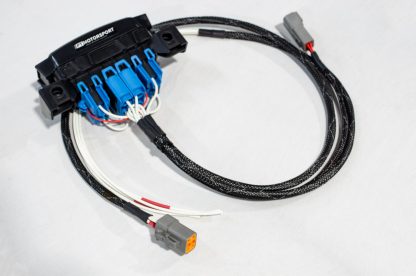

Assembled Dual Relay XHD Fuse Box

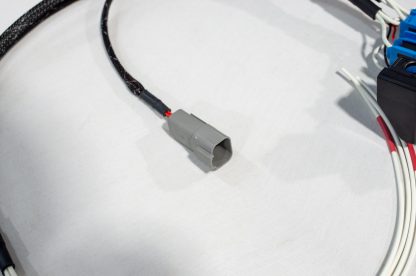

Description Dual Relay Fuse Box XHD Fully Water Proof Modular Design These components have significantly larger terminals than those found in the ISO280 range and will handle the load of the most demanding electrical components, including SPAL thermo fans, High flow fuel pumps, like 525 and 460 pumps, power steering pumps and other high current motorsport accessories. Current rating:  Up to 30A per circuit @ 80degC Wire Size:  Relay power wiring -10ga Temperature Range:  -40 degC to 125 degC Dimensions:  164mm x 59 mm x 92mm Mounting hardware required:  M6 (included) Mounting Holes: 131mm, center to center. Made with 50cm flying leads for power, and triggering. DT connector for Relay triggering and Relay ignition power. For the power side of the circuit, there are multiple options for termination: No Termination, the wires are left as bare ends Ring Terminals, the wires are left as bare ends so they can be cut to length, but ring terminals are included for self-termination for applications such as fuel tank passthroughs DTP Connector, A DTP4 connector is terminated onto the wire ends. There are Three options for Sheathing: No Sheathing, wires will be bare Braid Sheathing, abrasion resistant with a -50 °C to 150 °C operating temperature, finished with heat shrink cuffs. Raychem DR-25, chemically resistant, abrasion resistant, with a -75°C to 150°C operating temperature, DR-25 is the ultimate in motorsport wire protection, finished with heat shrink cuffs. Any options for connectors will come with the mating side as a kit. If none of the options suit your project, please get in contact with us as we can and do make custom fuse boxes often!
