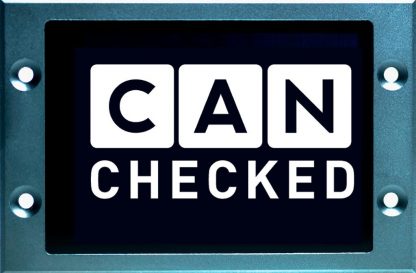

CAN Checked – MFD28 CAN Display

Description track view performance meters daily dash fuel logging Basic logging air logging (MFD32 Pictured) – supported values ​​- Many customers always ask: “Which values ​​can I request from my control unit”. The answer: ” ALL “. Our MFD28 is compatible with ISO 11898-2 and SAE J2284. The control unit manufacturers themselves determine which values ​​are sent via the CAN bus interface. Documentation is important here – possibly even in the form of a DBC file that can be imported directly. You can also access our extensive list of already implemented controllers. These can be found in the download area . A total of up to 50 sensors can be queried if the manufacturer supports this. Data available in the broadcast as well as OBD2 queries via Can Bus (11bit/29bit) are implemented. Special protocols such as TP2.0 from VW/Audi and UDS are also available. If the desired control unit is not listed, please contact us:  contact form MFD28 – dimensions and attachment With its installation dimensions of 70.3 x 52mm, the display is very compact. The four holes on the front and the included four black Torx screws give the whole thing the perfect touch – DSS – Display Setup Software – With our DSS – Display Setup Software, the MFD28 can be conveniently configured on the PC. The Can Bus protocol can be customized, you can import DBC files and design the displays with your widgets. The log viewer downloads log files from the display. You can then look at them and select and scale values ​​individually. A built-in Can Bus Logger makes it possible to look very closely at the log. This allows unknown CAN buses to be reverse engineered. DSS intro DSS widgets DSS Can Bus Editor – Connection and extensions – With our wide range of products, the display can be flexibly expanded CAN checked sensor for water/oil temperature CAN checked sensor for oil pressure/fuel pressure CAN checked Can Bus Extension:  MCE18 – Can Bus Extension CAN checked Can Bus Hub:  CBD08 – can bus distribution / can hub – CAD dummy files – If someone would like to integrate the MFD28 themselves and is fit in the area of ​​​​CAD, we offer them a STEP/STL file here, which can be used as a dummy for the construction: CAD_Dummy_MFD28.stl CAD_Dummy_MFD28.stp
